1AX UbiqVue™ System

The single-use solution for cardiac and multiparameter monitoring in wireless mode, for wire-free healthcare.

UBIQUE 1AX: THE CONTINUOUS AND WIRELESS MONITORING SYSTEM

The 1AX biosensor allows patients to move freely within a hospital or home environment, while their ECG and biometric data are continuously recorded and transmitted with minimal latency for up to five days.

Specifications

105 mm x 94 mm x 12 mm – weight 28 g – IP24 protection – 16-hour cache memory– event button.

Electrocardiogram

2 channels, 244.14 samples/second, 16-bit resolution.

Battery

Lithium manganese dioxide (Li-MnO2), lasting up to 5 days, defibrillation-proof.

Wi-Fi

IEEE 802.11b, WPA2-PSK/CCMP security, range up to 5 meters.

The LifeSignals 1AX UbiqVue™ biosensor is classified under MDR (EU 2017/745) as a Class IIb medical device – RDM: 2821922.

The UbiqVue™ portal enables centralized monitoring management. Authorized healthcare professionals can access, from any internet-connected workstation, a real-time multipatient view of continuous vital signs, with configurable clinical alarms and automatic report generation features.

Operational Features

  1. Data Visualization:

    • The system offers a multipatient view for simultaneous monitoring of up to 18 patients per screen, as well as a single-patient view mode with full access to historical trends and clinical details.
    • Alarm Management: Configurable alerts for clinical and technical parameters, notified via email or other platforms (e.g., WhatsApp).
    • Report Generation: Customized reports by session, daily, or end-of-monitoring, integrating data from third-party devices.
  2. Compatibility and Scalability:

    • Integrates with EMR/EHR systems for continuous information flow.
    • Web-accessible.
  3. Security:

    • Advanced encryption: Data protection during transmission and storage.
    • Regulatory compliance: Compliant with HIPAA and GDPR standards.
    • Access management: Role-based permissions for personnel.

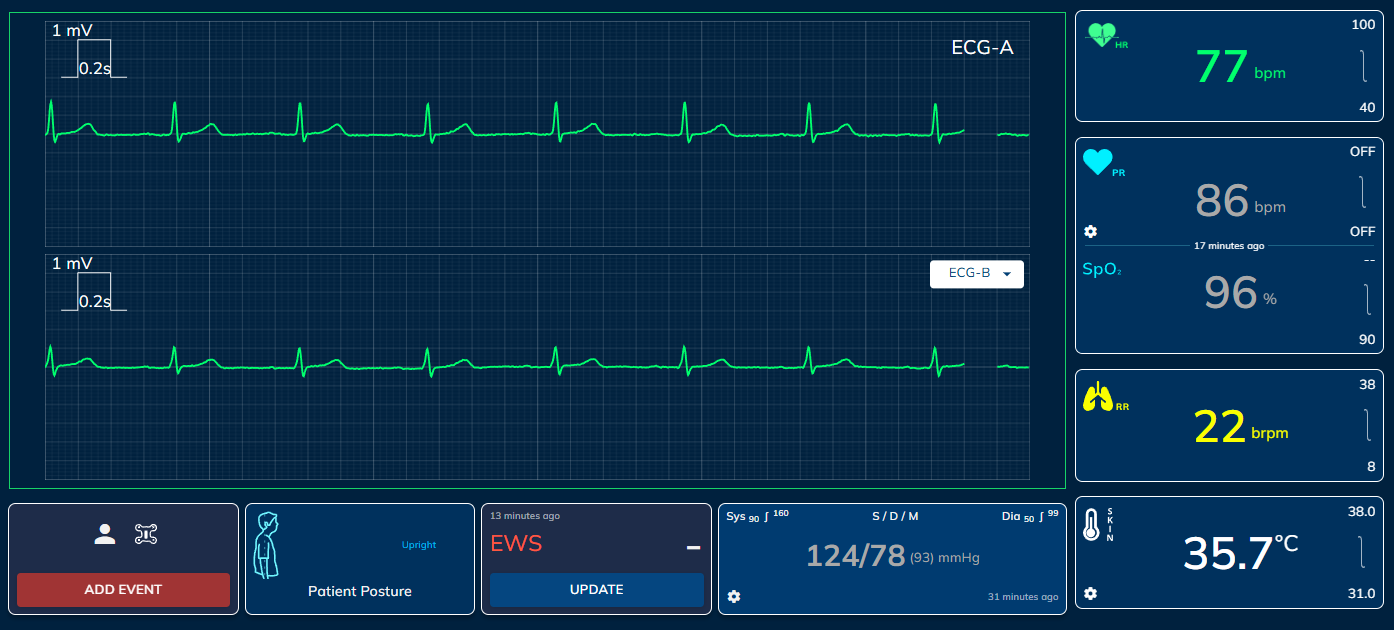

Image 1

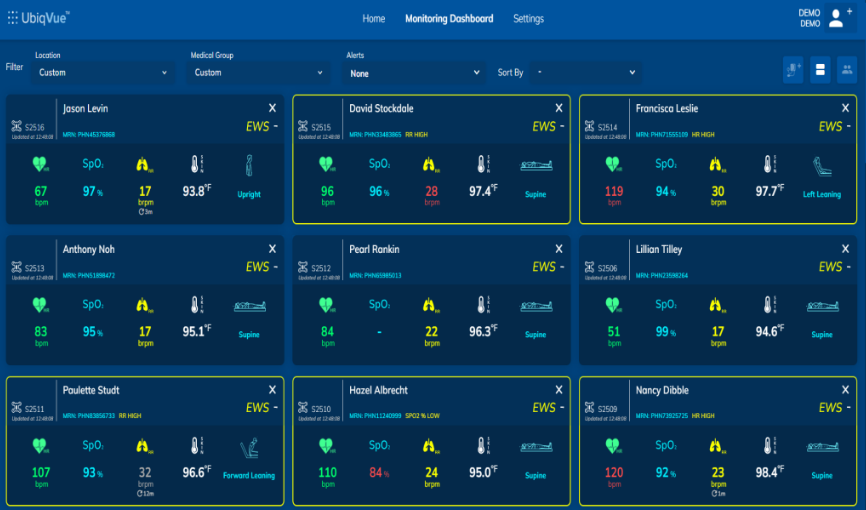

Image 2

Why Choose UbiqVue™

The 1AX UbiqVue™ system by LifeSignals is a complete and innovative solution designed for the collection, transmission, analysis, and real-time reporting of key biometric patient data, both in clinical and home environments. Through advanced wireless technology and a high-performance single-use biosensor, UbiqVue™ enables continuous, uninterrupted monitoring of vital signs, providing a consistent and up-to-date picture of the patient’s clinical status.

Thanks to its ability to promptly detect critical changes in physiological parameters, the system significantly contributes to reducing avoidable hospitalizations, preventing exacerbations, and improving therapeutic adherence, enabling more timely and targeted clinical interventions. The integration of data from additional devices such as pulse oximeters and blood pressure monitors allows for an even more comprehensive overview of the patient’s condition.

UbiqVue™ also offers concrete support for real-time clinical decision-making, thanks to immediate availability of historical trends, configurable alarms, and customized reports. The platform is securely accessible from any internet-connected location, ensuring maximum operational flexibility for healthcare professionals. All of this is done in full compliance with the strictest international data security standards, ensuring reliability, protection of sensitive information, and access management aligned with GDPR and HIPAA regulations.
